Name: High Torque Output Brushed DC Torque Motor with Up to 85% Efficiency and Compact Size for Industrial Automation
Brand: Shaanxi Shinhom Enterprise Co.,Ltd
SKU: Geborstelde DC-koppelmotor
Availability: InStock

Kenmerken Galerij Productomschrijving Ga Nu Praten.

Kenmerken

Specificaties

Spanning:: 12V / 24V

Torsie:: 0,1 Nm tot 1,5 Nm (afhankelijk van model)

Snelheidswaaier:: 500 tot 3000 tpm

Efficiëntie:: Tot 85%

Motortype:: Geborstelde gelijkstroom

Bedrijfstemperatuur:: -10°C tot +60°C

Gewicht:: 0,8 kg tot 2,5 kg (afhankelijk van model)

Maatwerk:: Beschikbaar voor aangepaste koppel- en snelheidsconfiguraties

Geluidsniveau:: ≤55dB (afhankelijk van snelheid)

Koeltype:: Natuurlijke luchtkoeling

Toepassingen:: Robotica, transportsystemen, testapparatuur, kleine apparaten

Markeren:

Brushed DC Torque Motor Compact Size

High Torque Brushed DC Torque Motor

Compact Brushed DC Torque Motor

Basis informatie

Plaats van herkomst: China

Merknaam: SHINHOM

Certificering: RoHS/ISO/UL/CE/IATF16949/CNAS

Modelnummer: Geborstelde DC-koppelmotor

Betalen & Verzenden Algemene voorwaarden

Levertijd: 2 ~ 8 weken

Betalingscondities: L/C, T/T

Galerij

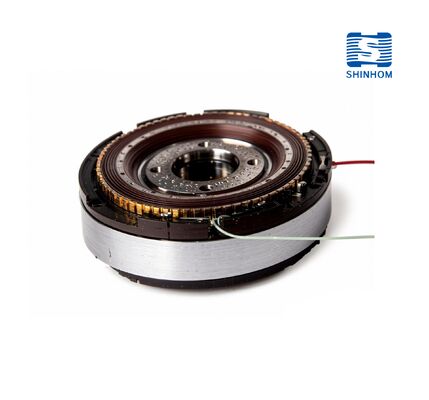

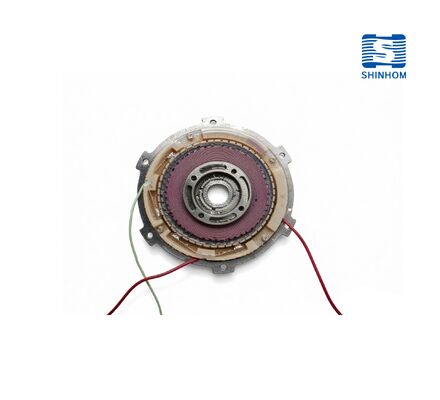

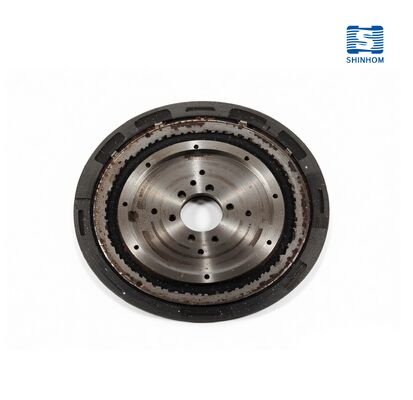

High Torque Output Brushed DC Torque Motor with Up to 85% Efficiency and Compact Size for Industrial Automation

Productomschrijving

High-Performance Brushed DC Torque Motor

Engineered for demanding industrial automation tasks, this brushed DC torque motor delivers reliable torque output with exceptional precision and efficiency. Designed to excel in environments where high torque at low speeds and consistent performance are crucial, its rugged construction and high energy efficiency make it ideal for robotics, conveyor systems, and other automation applications requiring continuous operation under load.

Key Features & Benefits

High Torque Output: Robust torque generation ensures smooth, powerful performance at low speeds
Brush Technology: Traditional brushed DC motor design for cost-effective, simple implementation with reliable performance
High Efficiency: Minimizes energy loss and heat generation for optimal energy use during operation
Durable Construction: Built to withstand demanding industrial environments with robust, reliable design
Compact Size: Delivers high torque in a compact form factor, ideal for space-constrained applications

Technical Data

Model	Peak Stall			Continuous Stall			Maximum No-load Speed (r/min)	Torque Ripple Coefficient (%)
Model	Voltage (V)	Current (A)	Torque (N·m)	Voltage (V)	Current (A)	Torque (N·m)	Maximum No-load Speed (r/min)	Torque Ripple Coefficient (%)
J49LYX01	44.3	≤7.73	≥0.443	14.6	≤2.576	≥0.148	2990	≤5
J50LYX01	27	≤2	≥0.25	9	≤0.67	≥0.08	1200	≤6
J72LYX01	22.4	≤6	≥0.32	11	≤2.8	≥0.14	2273	≤5
J75LYX01	27	≤3	≥1.2	11	≤1.3	≥0.5	≤600	≤6
J76LYX01	22.4	≤5.5	≥0.43	11	≤2.5	≥0.2	1222	≤5
J88LYX-CJ01	27	≤2.7	≥19	9	≤1	≥4	25	≤6
180LYX01	28	≤5.04	≥14.7	13	≤2.5	≥7	65	≤6
180LYX02	27	≤4	≥9.8	12	≤1.8	≥4	65	≤6
200LYX01	27	≤5	≥4.9	12	≤2.2	≥2	—	≤5

Industrial Applications

Industrial Automation: Automated assembly lines and robotic systems
Conveyor Systems: Manufacturing facility conveyors requiring smooth, reliable torque
Test Equipment: Laboratory testing environments with precision torque requirements
Small Appliances: Consumer electronics motors where high torque is needed in compact designs
