Thuis /Producten/AC DC Voedingsmodule/SMT 1W Isolated Output DC DC Converter for Temperature Environments -40°C 105°C Isolation Voltage 1500V Min

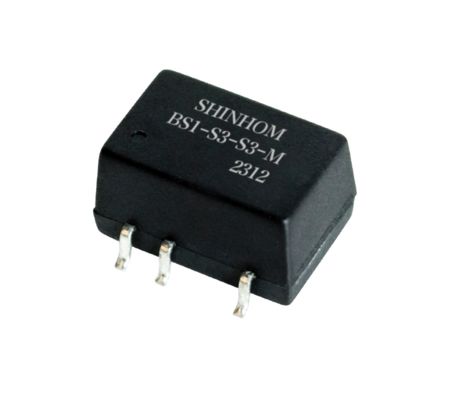

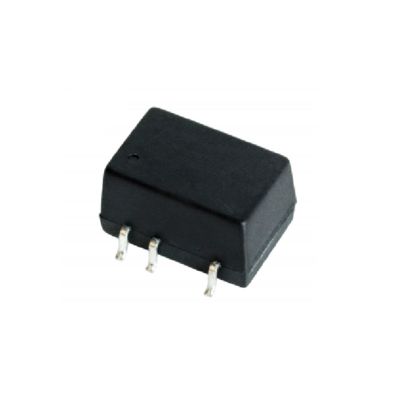

SMT 1W Isolated Output DC DC Converter for Temperature Environments -40°C 105°C Isolation Voltage 1500V Min

5000
MOQ
SMT 1W Isolated Output DC DC Converter for Temperature Environments -40°C 105°C Isolation Voltage 1500V Min
Kenmerken Galerij Productomschrijving Ga Nu Praten.
Kenmerken
Specificaties
Isolatiespanning: 1500 V Min
Stroom: 1W
Bedrijfstemperatuur: -40°C ~ +105°C
Antistatische bescherming: tot 8KV
Invoerspanning: 3VDC,5VDC,12VDC,15VDC,24VDC
Uitgangspanning: 3VDC,5VDC,9VDC,12VDC,15VDC,24VDC
Installatie: SMT
Markeren:

-40°C Isolated Output DC-DC Converter

,

105°C Isolated Output DC-DC Converter

,

SMT Isolated Output DC-DC Converter
Basis informatie
Plaats van herkomst: CHINA
Merknaam: SHINHOM
Certificering: RoHS
Modelnummer: bs1
Document: BS1 DC-DC Converter_.pdf
Betalen & Verzenden Algemene voorwaarden
Levertijd: 2 ~ 8weeks
Betalingscondities: L/c, t/t
Productomschrijving
ES201 Series High-Precision Residual Current Sensor for EV Charging Protection
As a critical safety component in global electric vehicle charging infrastructure, the ES201 series residual current sensors utilize advanced fluxgate technology to achieve exceptional detection of complex fault currents. This precision current sensor reliably identifies AC currents, pulsating DC currents, steady DC currents, and high-frequency residual currents. It integrates self-diagnostic functions and logic evaluation circuits within a compact, modular design. Compliant with the most stringent international protection standards, including Class B and A+6mA/DC, it is the preferred choice for EV charging residual current monitors, enhancing safety and compliance in Mode 2 and Mode 3 charging applications.
Features:
  • Universal Compliance: Meets Type B & A+6mA/DC standards, ensuring compatibility with new Chinese GB, European, and North American safety requirements (IEC62955, GB/T18487, UL2231-2).
  • Fluxgate Technology: Provides high-accuracy detection of all residual current waveforms, surpassing conventional solutions.
  • Integrated Self-Check: Automatic self-diagnosis function enhances system reliability and operational safety.
  • Digital Output: Simple high-low level signal output for seamless integration with system MCUs.
  • Compact & Flexible Design: Small form factor with multiple installation options: PCB mount (perforated/pre-embedded) and connector types for design versatility.
  • Robust Construction: Rated for an extended operating temperature range from -40°C to +85°C, suitable for demanding environments.
Performance Index
Parameter Specification
Protect Type Type B or A+6mA/DC
Power Supply Voltage +5 VDC
Output Mode High-Low Levels
Operating Temperature -40°C ~ +85°C
Maximum Current User-Selected or Model-Specific (e.g., 32A, 42A, 80A)
Application Power Range Covers systems from 3.5kW, 7kW, 11kW, up to 22kW
Key Standards IEC62955, IEC62752, IEC62423, IEC61851, GB/T22794, GB/T18487, GB/T41589, UL2231-2
Applications
This versatile electrical sensor is engineered specifically for the electric mobility ecosystem, serving as a core safety component in AC charging systems worldwide.
  • Portable EV Chargers (IC-CPD): Provides essential residual current protection in Mode 2 charging cables.
  • AC Charging Piles & Wallboxes: The ideal residual current sensor for Mode 3 charging stations in residential, commercial, and public settings.
  • Electric Vehicle Supply Equipment (EVSE): Ensures operational safety and standard compliance for all AC charging infrastructure.
  • Smart Energy Systems: Offers critical fault detection in applications where charging points integrate with renewable energy and grid management.
label:

Type B & A+6mA/DC bescherming reststroomsensor

Hoge precisie split-core stroomtransformator

Fluxgate technologie stroomsensor
