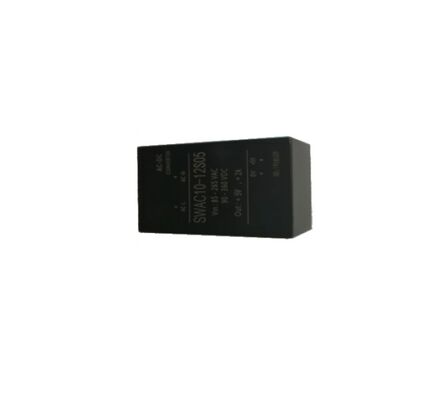

High-Efficiency 20W Ultra-Wide Input AC/DC Power Supply with Robust Industrial Design for Industrial Automation

5000
MOQ
High-Efficiency 20W Ultra-Wide Input AC/DC Power Supply with Robust Industrial Design for Industrial Automation
Kenmerken Galerij Productomschrijving Ga Nu Praten.
Kenmerken
Specificaties
Markeren:

Ultra-Wide Input Voltage Range AC/DC Power Supply

,

High Efficiency Switching Power Supply

,

Robust Industrial Design Industrial Power Supply
Basis informatie
Plaats van herkomst: China
Merknaam: SHINHOM
Certificering: RoHS
Modelnummer: SWAC20-12SXX
Document: SWAC20-12SXX_.pdf
Betalen & Verzenden Algemene voorwaarden
Levertijd: 2 ~ 8weeks
Betalingscondities: L/C, T/T
Productomschrijving
High-Efficiency 20W Ultra-Wide Input AC/DC Power Supply
The SWAC20-12SXX series is a compact, isolated, single-output AC/DC power supply designed for demanding applications requiring high reliability and wide input voltage compatibility. As an industrial power supply, it delivers stable performance across extreme temperatures and harsh environments, making it an ideal switching power supply solution for global OEMs and system integrators.
Key Features
  • Ultra-Wide Input Voltage Range: 85-265VAC (90-360VAC) compatible, ensuring stable operation under fluctuating grid conditions
  • High Efficiency & Energy Saving: Typical efficiency up to 83%, reducing heat generation and power loss
  • Robust Industrial Design: Operates from -25°C to +85°C (industrial grade) or -40°C to +85°C (military grade)
  • Full Safety Protections: Includes overcurrent, short-circuit, overheat, and self-recovery protection
  • Strong EMI Immunity: Metal housing with flame-retardant encapsulation, compliant with RoHS
  • 2500VAC/4000VAC Isolation: Enhances system safety and noise rejection
Technical Specifications
Model Output Voltage Max Output Current Efficiency (Min) Package
SWAC20-12S3.3 3.3V ±2% 6060 mA ≥78% DIP
SWAC20-12S05 5V ±2% 4000 mA ≥79% DIP
SWAC20-12S09 9V ±2% 2222 mA ≥80% DIP
SWAC20-12S12 12V ±2% 1666 mA ≥81% DIP
SWAC20-12S15 15V ±2% 1333 mA ≥82% DIP
SWAC20-12S24 24V ±2% 833 mA ≥83% DIP
Electrical Characteristics
  • Input Voltage: 85-265VAC (47-63Hz)
  • Output Ripple: ≤ ±2% of Vo (full load, 20MHz bandwidth)
  • Voltage Regulation: ≤ 2.0%
  • Load Regulation: ≤ 1.0%
  • Insulation Resistance: ≥ 50 MΩ 2500VAC
  • MTBF: >2,000,000 hours
Typical Applications
This wide input voltage power supply is widely used in:
  • Industrial Control Systems: PLCs, sensors, motor drives, and automation equipment
  • Telecommunications: Railway communications, interface converters, and base station accessories
  • Medical Electronics: Portable monitors, diagnostic instruments, and medical controllers
  • Embedded Systems: A/D and D/A converters, IC card meters, and digital control boards
  • Security & Monitoring: Burglar alarms, surveillance devices, and access control systems
Why Choose SWAC20-12SXX?
  1. Global Voltage Compatibility: Suitable for all major grid standards worldwide
  2. Compact & Reliable: DIP package (54×29×23.5 mm) with full encapsulation for vibration and moisture resistance
  3. Easy Integration: Standard pin layout and natural cooling design simplify PCB mounting and system assembly
  4. Customizable Options: We support tailored input/output voltage designs upon request
