High-Precision SMD Current Sense Transformer with 50A Capacity, Wide Operating Range (-40℃ to 125℃), and Multiple Ratio Options (1:30 to 1:200)

1000
MOQ
High-Precision SMD Current Sense Transformer with 50A Capacity, Wide Operating Range (-40℃ to 125℃), and Multiple Ratio Options (1:30 to 1:200)
Kenmerken Galerij Productomschrijving Ga Nu Praten.
Kenmerken
Specificaties
Turn Ratio: 1:30 - 1: 200
Nominale stroom: 50 A
Bedrijfstemperatuur: -40 ℃ tot +125 ℃
Isolatiespanning: 3300 VDC
Markeren:

50A Current Capacity Current Sense Transformer

,

Wide Operating Range Current Sense Transformer

,

Multiple Ratio Options SMD Current Transformer
Basis informatie
Plaats van herkomst: CHINA
Merknaam: SHINHOM
Certificering: RoHS
Modelnummer: Acster11.5 -serie
Document: ACSTER11.5 Series_.pdf
Betalen & Verzenden Algemene voorwaarden
Levertijd: 2 ~ 8weeks
Betalingscondities: L/c, t/t
Productomschrijving
High-Precision SMD Current Sensor Transformer for Power Monitoring Applications

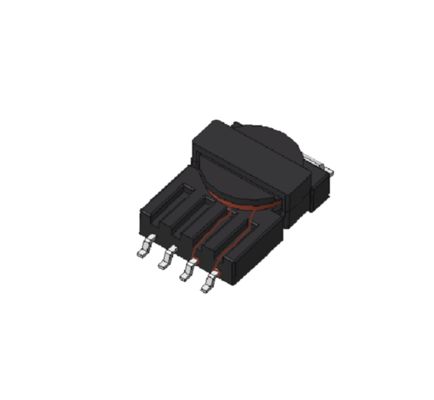

Introducing the ACSTER11.5 Series, a high-performance SMD Current Transformer designed for accurate current sensing in modern electronic systems. This advanced Current Sensor Transformer combines exceptional electrical characteristics with compact surface-mount packaging, making it ideal for space-constrained applications requiring reliable current monitoring up to 50 amps.
Key Features & Benefits
  • Compact SMD Design: Surface-mount package enables automated assembly and saves valuable PCB space
  • High Current Capacity: Rated for up to 50A Current Transformer applications with excellent linearity
  • Wide Operating Range: Performs reliably across -40℃ to 125℃ temperature range
  • Multiple Ratio Options: Available in turns ratios from 1:30 to 1:200 Current Transformer configurations
  • Low Power Loss: Very low DC resistance ensures minimal power dissipation
  • Safety Certified: 3300VDC hipot rating provides enhanced system safety
Applications
  • Switch mode power supplies and inverters
  • Motor control and drive systems
  • Power monitoring and management systems
  • Industrial automation equipment
  • Energy metering and smart grid applications
  • Automotive electronic systems
Technical Specifications
Part Number Secondary Inductance (mH) Min Current Rating (A) Max Turns Ratio DCR (mΩ) Max Primary DCR (mΩ) Max Secondary Hipot (VDC)
ACSTER11.5-030 0.3 50 1:30 0.56 240 3300
ACSTER11.5-050 1.1 50 1:50 0.56 600 3300
ACSTER11.5-100 4.5 50 1:100 0.56 2600 3300
ACSTER11.5-125 7.0 50 1:125 0.56 4200 3300
ACSTER11.5-150 10.0 50 1:150 0.56 6000 3300
ACSTER11.5-200 17.5 50 1:200 0.56 12000 3300
Physical Characteristics
  • Package Dimensions: 20.5mm × 12.5mm × 5.5mm
  • SMD compatible design
  • RoHS compliant construction
Why Choose Our Current Transformer?
The ACSTER11.5 Series represents the ideal solution for designers seeking a reliable SMD Current Transformer that combines accuracy, compact size, and robust performance. With multiple turns ratio options including the high-ratio 1:200 Current Transformer models, this series provides design flexibility for various current sensing requirements. Our 50A Current Transformer capabilities ensure reliable operation in demanding applications, while the surface-mount design simplifies manufacturing integration.
